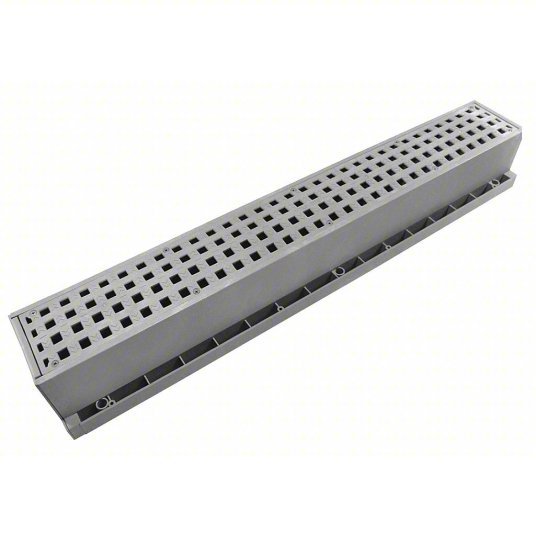

TR1 TUF-TITE 36" TRENCH DRAINAGE

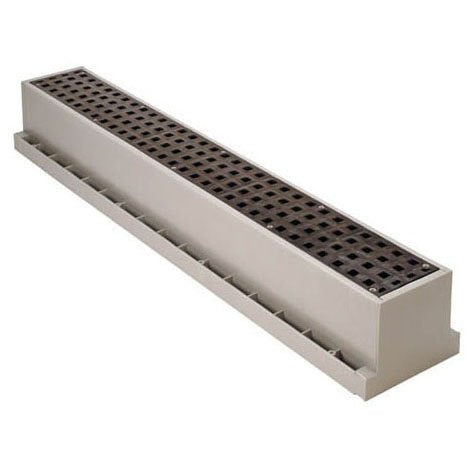

TR1 TUF-TITE 36" TRENCH DRAINAGE-2
TR1 TUF-TITE 36" TRENCH DRAINAGE
TR1 TUF-TITE 36" TRENCH DRAINAGE-2

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

36 in. Trench Drain - TUF-TITE

(0)
$58.28
In stock
Usually ships within 24 hours
Color

Bulk Order Shipping Available

Request a quote to view shipping rates for large orders and products typically available for pickup only.

Got questions?

Feel free to get in touch

Ask an expert!

Email (440)-290-0703

Professional-grade preassembled trench drain system designed for residential and commercial surface water management applications. Manufactured by TUF-TITE in 36-inch length, this complete drainage solution comes fully assembled and ready to install with included ADA-compliant grate and two snap-on end caps. The heavy-duty construction features H-20 load rating (235 psi) and Load Class C certification, making it suitable for heavy traffic including fully loaded forklifts in warehouse environments. Available in gray body with choice of black or gray grate for aesthetic flexibility. Perfect for driveways, garage floors, swimming pool decks, loading docks, and industrial facilities requiring reliable linear drainage.

36-Inch Length: Standard size for residential and light commercial drainage applications

Complete Assembly: Comes fully assembled and ready to install—no assembly required

Includes All Components: Trench body, ADA-compliant grate, and 2 snap-on end caps included

H-20 Load Rating: 235 psi heavy traffic wheel load rating (Load Class C)

Heavy Traffic Capable: Holds up to fully loaded forklift traffic in warehouse and industrial settings

ADA Compliant Grate: Meets accessibility requirements for commercial installations

Snap-On End Caps: Easy installation and secure closure at trench ends

Color Options: Gray body available with black or gray grate to match project aesthetics

Ready to Use: Pre-assembled design saves installation time

Residential driveways and aprons

Garage floors and workshop drainage

Swimming pool deck water removal

Warehouse and factory floor drainage (forklift traffic)

Loading dock water management

Commercial parking area drainage

Patio and outdoor living space drainage

Light industrial facility floor drainage

Any application requiring heavy-duty linear surface drainage

Overall Length: 36 inches

Overall Width: 6-3/4 inches

Overall Depth: 5 inches

Load Rating: H-20 (235 psi), Load Class C

Includes: Trench body, ADA-compliant grate, 2 snap-on end caps

Body Color: Gray

Grate Color Options: Black or Gray

Assembly: Fully assembled and ready to install

Compliance: ADA-compliant grate design

Traffic Capacity: Heavy traffic including fully loaded forklifts

Manufacturer: TUF-TITE

Product Type: Preassembled trench drain system / linear drainage channel

Application: Driveway drainage, garage floors, pool decks, warehouse floors, loading docks, heavy-traffic surface water management
