Drainage Pipe & Fittings

• • Offers watertight fit for secure and leak-free connections

  • Designed to produce a 90-degree change in the flow direction

  • Snap-in end connection ensures easy installation and is ideal for gravity-flow storm sewer and subsurface drainage application

Injection molded

• Annular corrugated profile wall polyethylene pipe and fittings for gravity-flow storm sewer and subsurface drainage application

• Soil Tight

Advanced Drainage Systems, Inc. (ADS) 4 in. Snap Tee is the ideal fitting used to connect a 4 in. lateral singlewall corrugated drain pipe to a 4 in. singlewall corrugated main line pipe. Made of high density polyethylene (HDPE), the snap tee is designed to last the life of the drainage system. ADS singlewall fittings are the right choice for your residential and commercial drainage projects.

Highlights

• Made of High-density polyethylene construction that resists corrosion and abrasion

• HDPE material is strong, durable, economical material which is less brittle than PVC, particularly in cooler temperatures

• Designed to join 4 in. single-wall corrugated polyethylene drainage pipes

• Snap-on design makes a fast, secure, leak-resistant joint connection

• Installs quickly because there is no need to bevel the pipe edge when making the joint

• Survives the impact of rocks in the backfill and the rigors of cold weather handling

• Joins 3 lengths of pipe at a 90° T angle

• All the economy and performance benefits you've come to trust in polyethylene pipe can now be enjoyed in a complete 4 in. through 60 in. system

4" PVC FITTING CLEAN OUT FITTING ONLY

refers to a plumbing fitting that allows access to a sewer line for cleaning, specifically designed for a 4-inch diameter pipe, and only includes the fitting itself (not the cap or plug that seals it) - essentially, it's a section of pipe with a threaded opening where you can screw on a cleanout plug to access the line for clearing blockages

• • This single wall corrugated pipe has kept farms, golf courses, parks and playing fields dry for decades by channeling away excess underground moisture. The perforated plastic pipe does the same for highway edge drains, culverts and other construction applications where preventing sand infiltration is important. Available with or without sock.

    • Easy to handle, safe, lightweight pipe requires less labor and equipment for faster installation and reduced costs

    • AASHTO HS-25 (highway traffic loads) rated with a minimum of 12 in. (300 mm) of cover for 3 to 24 in. (75 - 600 mm) diameters

    • Provides superior resistance to chemicals, road salts, motor oil and gasoline will not rust, deteriorate or crumble

    • Withstands repeated freeze/thaw cycles and continuous sub zero temperatures

    • The sock meets the requirements of ASTM D6707

ADS single wall corrugated pipe has kept farms, golf courses, parks and playing fields dry for decades by channeling away excess underground moisture. ADS perforated plastic pipe with sock does the same for highway edge drains, culverts and other construction applications where preventing sand infiltration is important.

• Sanitary sewer trunk lines

• Works well with poor native soils

• Economical, easy-to-install solution to all kinds of residential storm water drainage problems downspouts run offs, foundation and window well drains, driveway culverts and wet spots on the lawn

• Allows for wide range of backfill materials

• Works well with poor native soils

• Sanitary sewer trunk lines

Dual wall N-12 pipe, with its smooth interior wall and corrugated exterior, offers exceptional hydraulics and strength. Built using application specific high density polyethylene, dual wall N-12 corrugated pipe also provides superior corrosion and abrasion-resistance. This makes it an excellent alternative to reinforced concrete (RCP) and corrugated metal pipe (CMP).

• Smooth interior with a Manning's value of 0.012 resulting in increased flow capacity

• Inert HDPE material is resistant to the effects of chemicals, abrasion, hot soils, and effluent

• Lightweight product for best installed cost and maximizing delivery and installation efficiencies

Dual wall N-12 pipe, with its smooth interior wall and corrugated exterior, offers exceptional hydraulics and strength. Built using application specific high density polyethylene, dual wall N-12 corrugated pipe also provides superior corrosion and abrasion-resistance. This makes it an excellent alternative to reinforced concrete (RCP) and corrugated metal pipe (CMP).

• Smooth interior with a Manning's value of 0.012 resulting in increased flow capacity

• Inert HDPE material is resistant to the effects of chemicals, abrasion, hot soils, and effluent

• Lightweight product for best installed cost and maximizing delivery and installation efficiencies

Easy to install and snap into place and is resistance to corrosion and abrasion.

• Easy to install and snap into place and is resistance to corrosion and abrasion

Advanced Drainage Systems, Inc. (ADS) 4 in. Singlewall Snap Wye is the ideal fitting used to connect a 4 in. singlewall corrugated drain pipe to a 4 in. singlewall corrugated main line pipe on a 45-degree angle. Made of high density polyethylene (HDPE), the snap wye is designed to last the life of the drainage system. ADS singlewall fittings are the right choice for your residential and commercial drainage projects.

Highlights

• Made of High-density polyethylene construction that resists corrosion and abrasion

• HDPE material is durable, strong and economical

• Designed to split runs of 4 in. single-wall corrugated polyethylene drainage tape

• Connects pipes at an angle

• Snaps easily onto pipe for fast connections

• One piece molded design deters leaking at the joint

• Use for residential drainage applications

• Black in color

Advanced Drainage Systems, Inc. (ADS) 4 in. Singlewall Solid Snap End Cap is the ideal fitting at the end of a 4 in. singlewall corrugated drain pipe run to block water flow. Made of high density polyethylene (HDPE), the solid snap end cap is designed to last the life of the drainage system. ADS singlewall fittings are the right choice for your residential and commercial drainage projects.

Highlights

• Made of High-density polyethylene construction that resists corrosion and abrasion

• Strong, Durable construction helps withstand weather and human elements, and does not become brittle over time

• Use to terminate a run of 4 in. D single-wall drainage pipe (not included)

• Fits over the outside of 4 in. corrugated flex drain pipe

• 4 in. corrugated pipe fitting

• Lightweight and easy to install

• Cap slips over end of pipe and snaps into pipe corrugations

• Integral cleats snaps onto the end of corrugated pipes for a secure fit

• One piece molded design deters leaking at the joint

• Rated for soil drains

• Maximum working temperature of 180°F

Easy-to-handle, safe, lightweight pipe requires less labor and equipment for faster installation and reduced costs

• Provides superior resistance to chemicals, road salts, motor oil and gasoline - will not rust, deteriorate or crumble

• Withstands repeated freeze/thaw cycles and continuous sub-zero temperatures

Advanced Drainage Corrugated Heavy Duty Perforated Single Wall Drain Pipe, 4 in, 250 ft Roll Length, HDPE

• Flexible, lightweight, easy to use

Annular corrugated profile wall polyethylene pipe and fittings for gravity-flow storm sewer and subsurface drainage application

• Joins 2 pieces of 4" pipe

Flexible, light weight, easy-to-use

• Great return on your investment

• Increased crop production/yields

• Decrease nitrates in drinking water

• Greater control over your crop management

This corrugated snap elbow is sometime called a bend a drain pipe. It features an outer style for extra strength and a compression fit to help ensure a tighter connection.

• 4 in.

• 90 deg.

• 5.1 in. length

The ADS 45 Degree Soil Tight Elbow N-12 Series Black is manufactured from super-quality material for excellent durability. The tool is light in weight for seamless operation. It is resistant to weather and corrosion for upscaled productivity.

The ADS 90 Degree Elbow N-12 Series HDPE Black is manufactured from super-quality material for excellent durability. The tool is light in weight for seamless operation. It is resistant to weather and corrosion for upscaled productivity.

• Dual wall N-12 pipe, with its smooth interior wall and corrugated exterior, offers exceptional hydraulics and strength. Built using application specific high density polyethylene, dual wall N-12 corrugated pipe also provides superior corrosion and abrasion-resistance. This makes it an excellent alternative to reinforced concrete (RCP) and corrugated metal pipe (CMP).

  • Smooth interior with a Manning's value of 0.012 resulting in increased flow capacity

  • Inert HDPE material is resistant to the effects of chemicals, abrasion, hot soils, and effluent

  • Lightweight product for best installed cost and maximizing delivery and installation efficiencies

• The single wall corrugated HDPE pipe is ideal for drainage projects where flexibility, light weight and low cost are important

• Homeowners find that this corrugated pipe is an economical, easy-to-install solution to common residential storm water drainage problems

• These may include downspouts run off, foundation and window well drains, driveway culverts and wet spots on the lawn

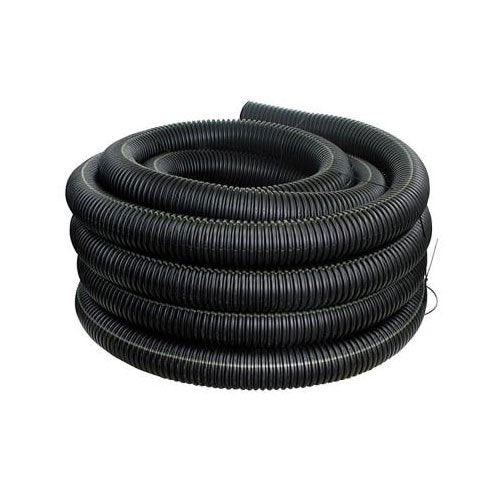

• Annular corrugated single wall

• 3"- 15" (75-381 mm)

• 100'-5,500' (30-1676 m) coils, depending on pipe diameter

• 10'-20' (3-6 m) sticks

• Internal, external snap or split band couplers

• ASTM F667

• • The single wall corrugated HDPE pipe is ideal for drainage projects where flexibility, light weight and low cost are important

  • Homeowners find that this corrugated pipe is an economical, easy-to-install solution to common residential storm water drainage problems

  • These may include downspouts run off, foundation and window well drains, driveway culverts and wet spots on the lawn

  • Annular corrugated single wall

  • 3"- 15" (75-381 mm)

  • 100'-5,500' (30-1676 m) coils, depending on pipe diameter

  • 10'-20' (3-6 m) sticks

  • Internal, external snap or split band couplers

  • ASTM F667

ADS® Soil/Watertight Joint Double Coupler, 12 in Fitting, Bell Connection, HDPE, Black, 14 in Overall Length, For Use With: N-12® Dual Wall Pipes

End caps and end plugs create a termination point for a line of drainage pipe.

• Crafted of high-density polyethylene for enhanced durability

• Spigot and bell ends enable trouble-free connection

• Ideal for use in storm sewers, culverts, cross drains, and more

• Ensures superior resistance to corrosion, abrasion, and chemicals

• N-12® soil-tight injection molded fittings

• Cleated bells

• Green pipe for use in gravity sewer and storm drainage applications

• Not intended for pressure use

• For use where systems will not exceed 140° F

• Highly resistant to chemicals commonly found in sewage and industrial waste

• Conforms to Standards: ASTM D 1784, ASTM D 3034, SDR 35, ASTM D 3212 and ASTM F 477

• Require no special tools for cutting and to be installed with solvent cement

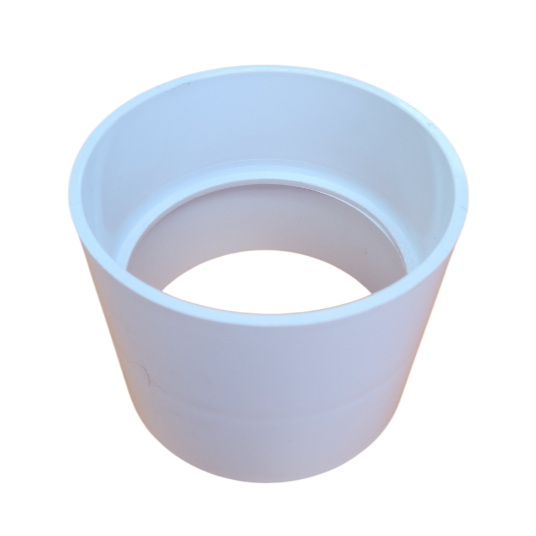

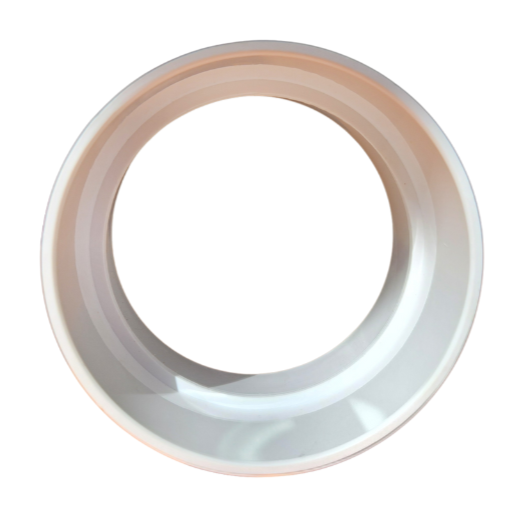

4" PVC Coupling

A 4 in PVC coupler is a fitting that joins two pieces of PVC pipe that are 4 inches in diameter

4" PVC SANITARY TEE

"4 inch sanitary tee" is a plumbing fitting, specifically a type of tee with a 4-inch diameter, designed to create a smooth transition in waste water flow by having a curved center section, typically used in drain lines where waste needs to change direction from horizontal to vertical without creating turbulence or blockages; essentially, it's a 4-inch pipe that branches off at a 90-degree angle with a curved design for optimal drainage

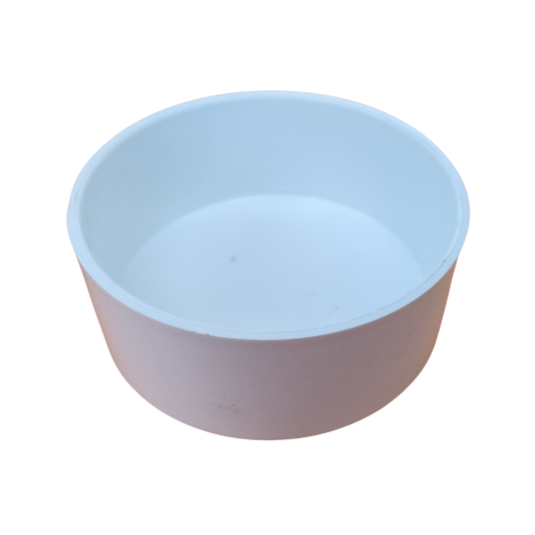

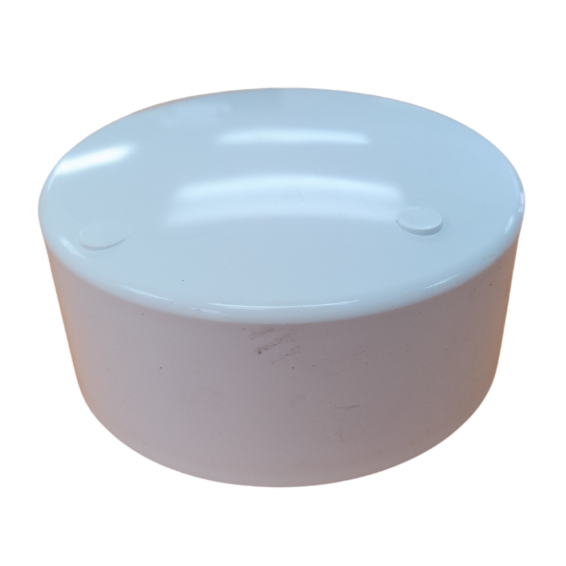

4" PVC CAP

is a fitting that seals the end of a 4 in PVC pipe.

2X3X4 PVC DOWNSPOUT ADAPTER

A rectangular pipe for conveying rain water from a gutter to the ground or to a drain.

4" PVC DRAIN GRATE

4" PVC FITTING, PLUG FOR C/O FITTING

4" PVC 90deg HUB/HUB LONG

"90 long turn PVC fitting" refers to a PVC pipe fitting that creates a 90-degree turn with a longer radius than a standard elbow, allowing for a smoother flow of liquid by minimizing turbulence within the pipe, often used in drain and waste systems where a gradual change in direction is needed; essentially, it's a "sweep elbow" with a 90-degree angle

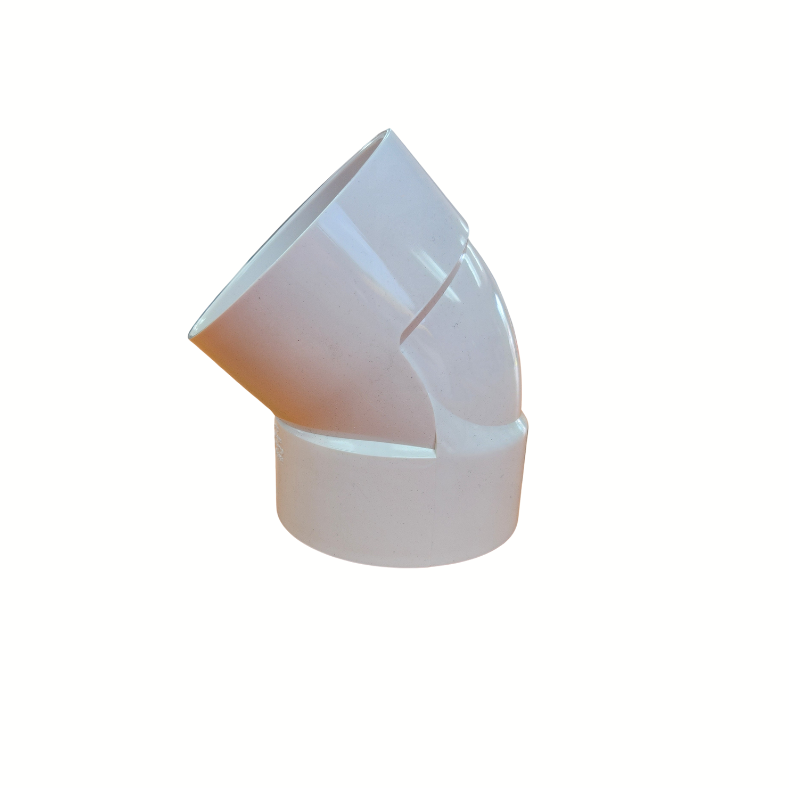

4" PVC 45deg HUB

4" PVC 22deg street HUB

"4 22 street coupler" refers to a plumbing fitting, specifically a "street elbow" that is 4 inches in size and has a 22.5 degree angle, typically used to connect a pipe directly to another fitting at an angle in a drain, waste, and vent (DWV) system; "street" indicates that one end connects to a pipe directly while the other connects to a fitting at an angle

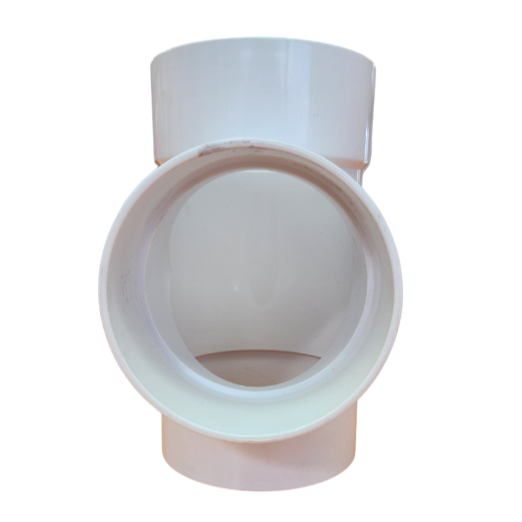

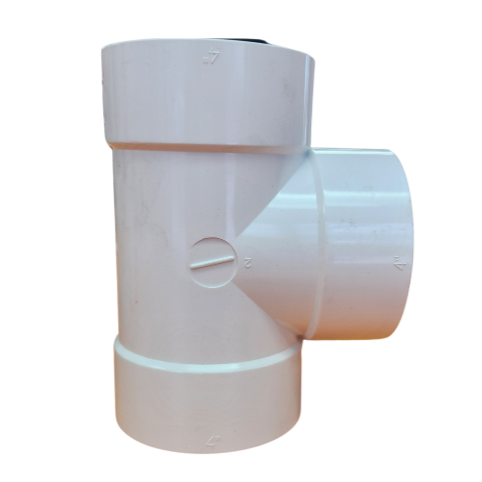

4" PVC TEE

PVC Tee joints are the most commonly used fittings. These joints are used to connect three pipes for the purpose of either combining or dividing the flow of the fluid

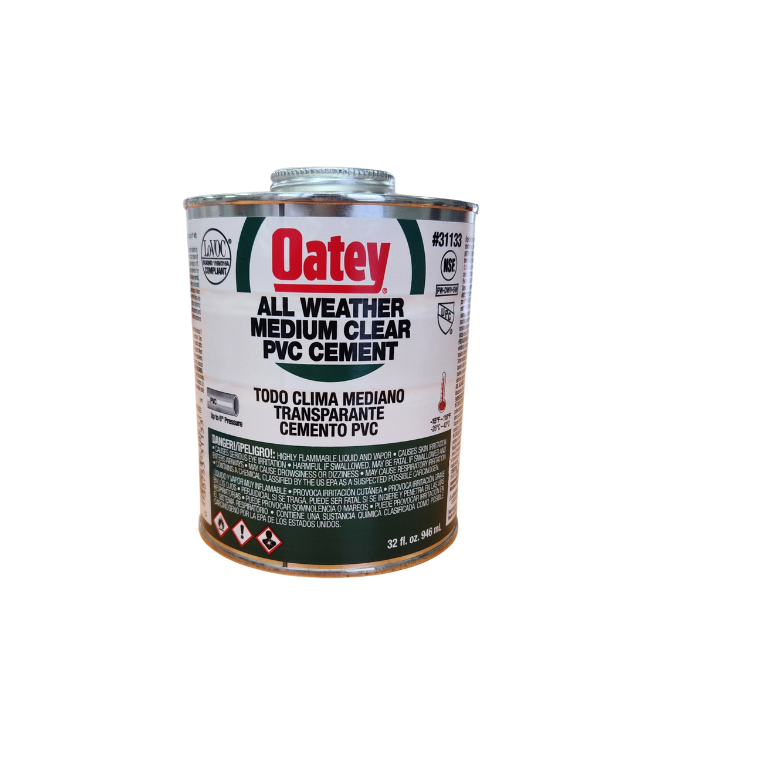

PVC CEMENT, ALL WEATHER, MEDIUM CLEAR

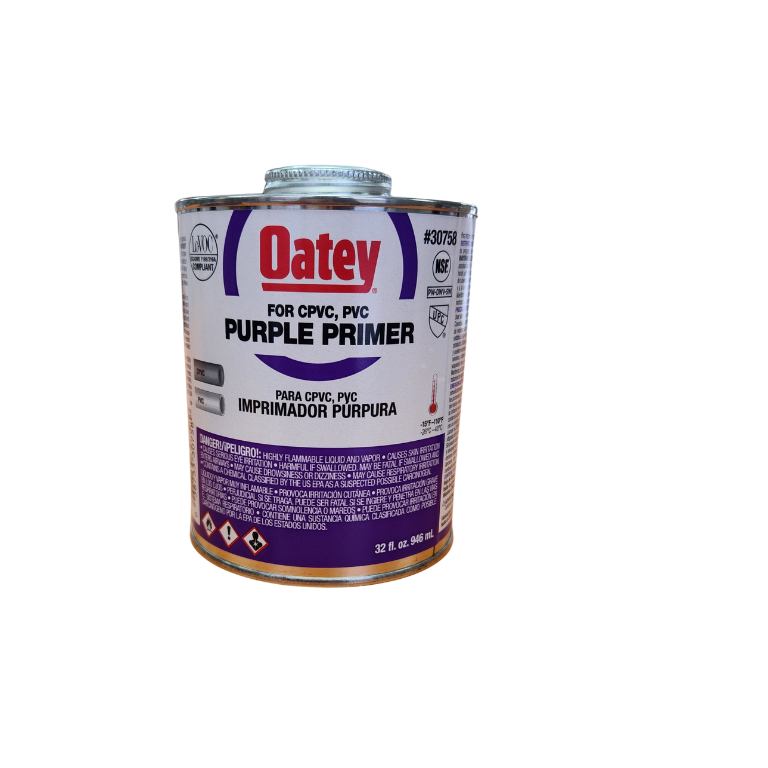

PVC PRIMER, PURPLE

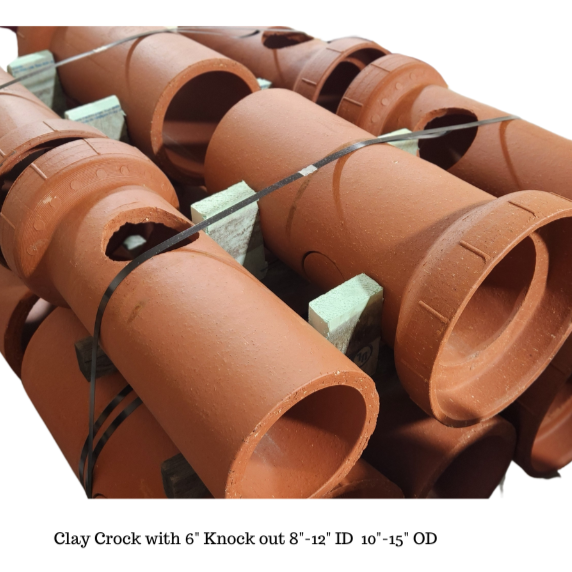

8"X24" W 6" SIDE HOLE CLAY CROCK

**LOCAL PICK-UP ONLY**

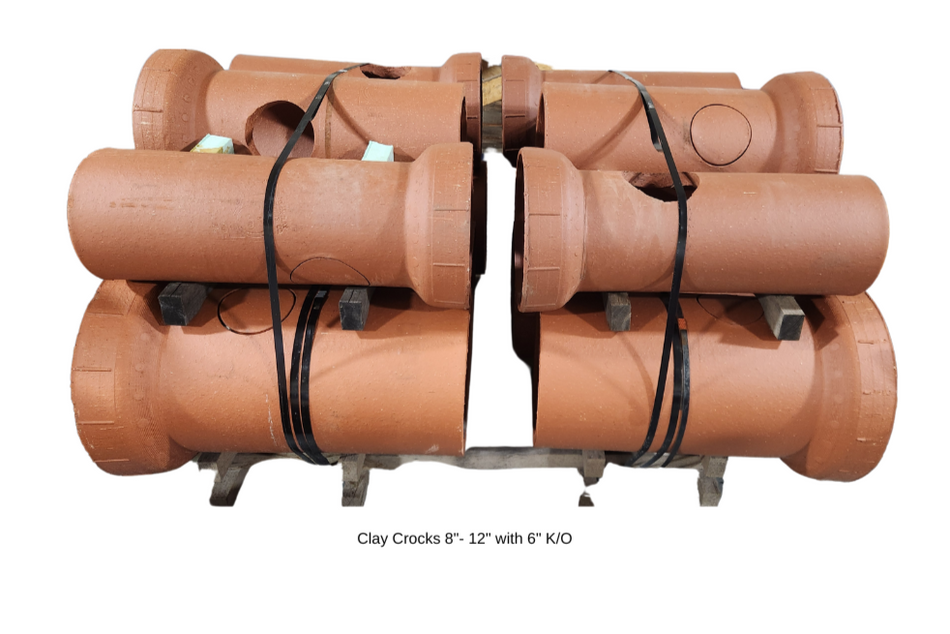

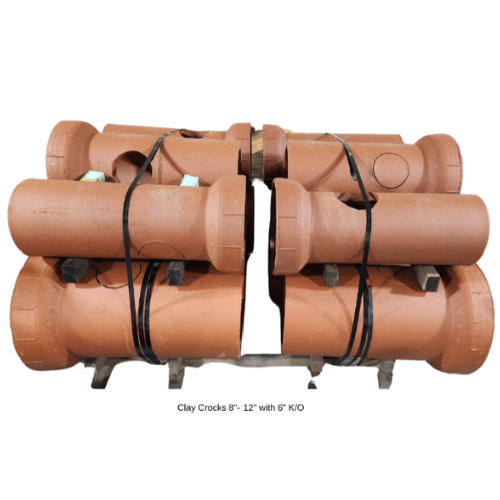

12"X24" W/ 6" SIDE HOLE CLAY CROCK

**LOCAL PICK-UP ONLY**

10"X24" W/6" HOLE CLAY CROCK

**LOCAL PICK-UP ONLY**

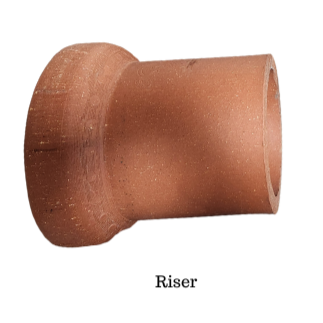

10"X12" CLAY CROCK RISER

12"X12" CLAY CROCK RISER

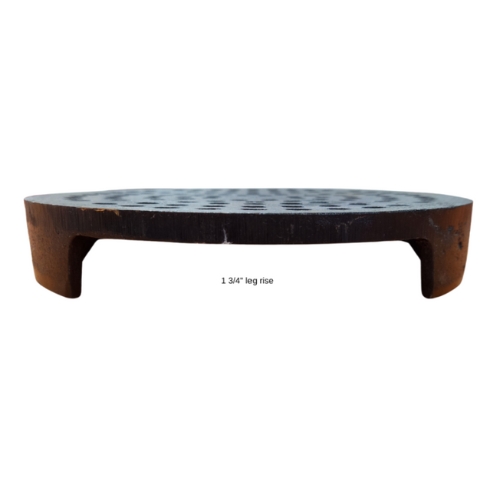

STRAINER-CI, FITS 8" CROCK, 10-1/4" DIA

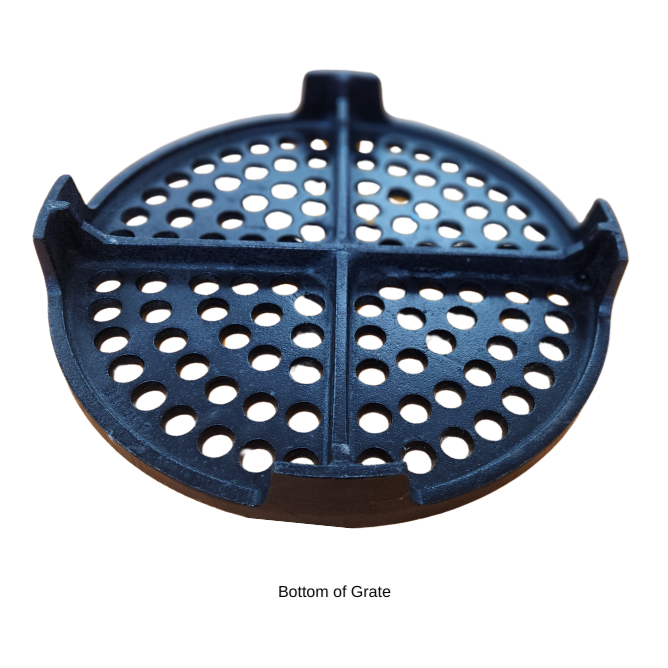

STRAINER-CI, FITS 12" CROCK, 14-1/2" DIA

STRAINER-CI, FITS 10" CROCK, 11-3/4" DIA

​Comes complete and fully assembled - Ready to use

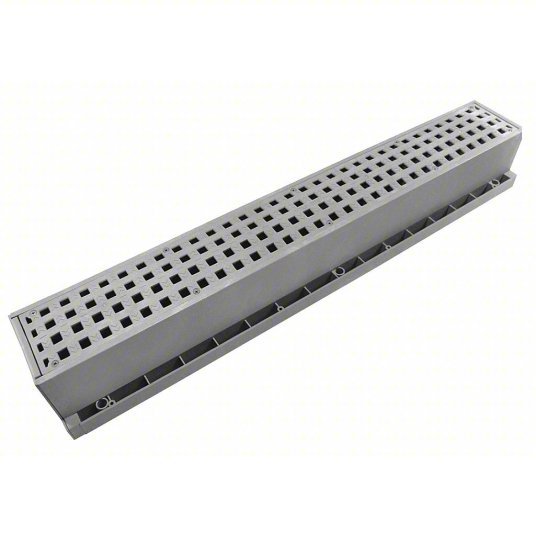

Each TR1 comes with: Trench, ADA Compliant Grate, 2 snap-on end caps

Available in gray body with black or gray grate

Great for:

Residential driveways, garage floors, swimming pool decks

H-20 (235 psi), heavy traffic wheel load rating (Load Class C)

Use on:
Warehouse factory floors (holds up to fully loaded forklift traffic)

 Loading docks

Overall Length

36 in

Overall Width

6-3/4 in

Overall Depth

5 in
