Drainage Pipe & Fittings

12"X24" W/ 6" SIDE HOLE CLAY CROCK

**LOCAL PICK-UP ONLY**

Comes complete and fully assembled - Ready to use

Each TR1 comes with: Trench, ADA Compliant Grate, 2 snap-on end caps

Available in gray body with black or gray grate

Great for:

Residential driveways, garage floors, swimming pool decks

H-20 (235 psi), heavy traffic wheel load rating (Load Class C)

Use on:
Warehouse factory floors (holds up to fully loaded forklift traffic)

 Loading docks

Overall Length

36 in

Overall Width

6-3/4 in

Overall Depth

5 in

Choose the plumber's choice for couplings and make your next project a breeze with the Fernco P1002-44 flexible PVC coupling. Connect 4 inch clay to 4 inch plastic (PVC, CPVC, abs, smooth wall HDPE), cast iron, copper, steel or lead pipes together in little-to-no-time. To install, simply slide the coupling on and torque down the bands to 60 in-lb. The maximum temperature this PVC coupling can safely operate in is 140 deg F with a minimum of -30 deg F. Pressure tested for 4.3 PSI operations. Before you grab the primer and glue - be sure and look for the right Fernco flexible coupling.

FEATURES

• The P1002-44 coupling connects 4 in. x 4 in. clay to cast iron/plastic pipes for a watertight joint
• For sewer and drain, waste and vent piping.
• Fernco flexible PVC couplings are easy to install by simply sliding over each pipe and clamped into place. You also won't have to worry about the mess or hassle of primer and glues and their unwanted odors.
• The dimensional flexibility of Fernco couplings ensure a leak-proof seal against infiltration & exfiltration. Made of elastomeric polyvinyl chloride, our couplings are strong, long-lasting & resistant to chemicals & sewer gases.
• Proudly Manufactured in the USA for over 50 years; Fernco has earned the reputation as the worldwide leader in flexible plumbing couplings based on their consistent and reliable performance.
• Conforms to ASTM D 5926, C 1173 CSA B602 and UPC Approved. 300 stainless steel clamps are corrosion-resistant, rustproof and make installing quick and easy with just a screwdriver, nut driver or torque wrench.

• Dual wall pipe with smooth interior, integral bell, and spigot coupler
• Used for high volume drainage and water flow

Annular corrugated profile wall polyethylene pipe and fittings for gravity-flow storm sewer and subsurface drainage application

• Joins 2 pieces of 4" pipe

• Green pipe for use in gravity sewer and storm drainage applications

• Not intended for pressure use

• For use where systems will not exceed 140° F

• Highly resistant to chemicals commonly found in sewage and industrial waste

• Conforms to Standards: ASTM D 1784, ASTM D 3034, SDR 35, ASTM D 3212 and ASTM F 477

• Require no special tools for cutting and to be installed with solvent cement

8"X24" W 6" SIDE HOLE CLAY CROCK

**LOCAL PICK-UP ONLY**

PVC CEMENT, ALL WEATHER, MEDIUM CLEAR

PVC PRIMER, PURPLE

10"X12" CLAY CROCK RISER

• Injection molded
• Annular corrugated profile wall polyethylene pipe and fittings for gravity-flow storm sewer and subsurface drainage application
• Soil tight

4 in. x 12 in. Dual Wall Riser for Downspout Leaf Filter and Clean Out

Choose the plumber's choice for couplings and make your next project a breeze with the Fernco P1056-44 flexible PVC coupling. Connect 4 inch plastic (PVC, CPVC, abs, smooth wall HDPE), cast iron, copper, steel or lead pipes together in little-to-no-time. To install, simply slide the coupling on and torque down the bands to 60 in-lb. The maximum temperature this PVC coupling can safely operate in is 140 deg F with a minimum of -30 deg F. Pressure tested for 4.3 PSI operations. Before you grab the primer and glue - be sure and look for the right Fernco flexible coupling.

FEATURES

• The P1056-44 coupling connects 4 in. x 4 in. cast iron or plastic pipes for a watertight joint
• For sewer and drain, waste and vent piping.
• Fernco flexible PVC couplings are easy to install by simply sliding over each pipe and clamped into place. You also won't have to worry about the mess or hassle of primer and glues and their unwanted odors.
• The dimensional flexibility of Fernco couplings ensure a leak-proof seal against infiltration & exfiltration. Made of elastomeric polyvinyl chloride, our couplings are strong, long-lasting & resistant to chemicals & sewer gases.
• Proudly Manufactured in the USA for over 50 years; Fernco has earned the reputation as the worldwide leader in flexible plumbing couplings based on their consistent and reliable performance.
• Conforms to ASTM D 5926, C 1173 CSA B602 and UPC Approved. 300 stainless steel clamps are corrosion-resistant, rustproof and make installing quick and easy with just a screwdriver, nut driver or torque wrench.

Product Details

Kit Includes:

• Turf Restrictor Plate in black or green.
• 4″ grate OR solid cover in black or green.
• (1) 4″ Corrugated to 4″ PVC HDPE coupler with female adapter with fasteners
• (1) 4″ Corrugated to 4″ PVC HDPE coupler with male adapter with fasteners
• Sump Basin Sediment Trap

This innovative design boasts a larger sump capacity for sediment, and a slim 5″ width to fit in a trench made with a trencher. The best part is, the slim design does not require a large hole, making installation a breeze.

The distance from inlet to outlet is greater than that of a traditional 4 in. catch basin, allowing for more sediment to be caught, and keeping your drain system pipe nice and clean. The top of the basin is shaped like a round 4″ drain pipe, ensuring that if your system has a 1% slope, no water will stand and freeze in the winter in the top portion of the catch basin.

Superior Strength to Withstand Any Climate
The bottom portion (sediment trap) is designed to take freeze ups without cracking or breaking, made from 100% virgin HDPE with no blown-in fillers or recycled materials for superior strength and longevity. It is also mold injected for controlled wall thickness, and connects to 4″ Corrugated.

Pilot Holes for Optional Drilling

If the installer chooses to drill holes in the bottom of the sump pit, there are 6 pilot holes for easy drilling.

Easy to Clean

The sediment trap is sloped so debris doesn’t settle in the center, making sediment removal a breeze.

There are no corners, and the interior design is rounded for ease of cleaning out the sediment.

This innovative design was created by contractors, ensuring that wisdom, knowledge, and experience were incorporated into every aspect.

5-Year Money-Back Guarantee

With a 5-year money-back guarantee against breakage, you can trust in the durability and longevity of this innovative catch basin. Please note, it is not intended for vehicular traffic. Upgrade your catch basin system with this innovative design and experience the difference for yourself.

Available in sleek black or classic white, our Downspout Leaf Filter is the perfect addition to any home exterior. Say goodbye to clogged downspouts and damaged home exteriors with our innovative and reliable solution. Order your Downspout Leaf Filter today and enjoy the peace of mind that comes with a clean and well-maintained home exterior.

FDM recommends black for those living in the North. Black gathers light and heats up during daylight hours to help melt freeze ups.

Product Details

Downspout Cleanout Leaf Filter

As a drainage contractor, one of our biggest complaints about downspout cleanouts was that they would spray and splash up against the house, which risks all kinds of damage to the home’s foundation.

We worked closely with engineers to create a downspout leaf filter and vented cleanout that would contain roof runoff water. This filled a much needed gap in the drainage market. I wish I had this part my whole career.

No More Splashing

Water falls through our leaf filter cleanout without any spraying or splashing. We designed it with a door that funnels the water through buried downspouts. When water enters the cleanout, it splashes off the inside of the door and sends the water down through the system.

Also, the shape of our vented cleanout allows water to funnel gradually. The fluid dynamics are second to none.

Vented Cleanout and Leaf Filter – All in One

First and foremost, this is a vented downspout cleanout, but we also built it as a leaf filter with a removable screen.

Patented Vent for Cleanout

Downspouts are powered by gravity. During a heavy rain event they can become full of water if there is nowhere to vent. Venting your downspout at the house will allow that water to keep velocity and flow at a higher speed.

Also, if you have a freeze up or if grass grows over your popup emitter, you’ll still be able to vent the water at the cleanout.

Removable Screen for Leaf Filter

This is the first cleanout on the market with a screen that you can remove, if desired. However, if you are trying to filter out leaves and large debris, we do recommend that you keep the screen in place.

You can also remove the center of the screen when you need to access the downspout line. This makes it easy to run a camera, a garden hose or a heat cable in the winter to keep water from freezing in the line.

Fits Any 3 or 4 in Drainage Pipe

No more shopping around to find different adapters and parts that fit. Our downspout cleanout leaf filter will connect to any 4 in. pipe.

• 4″ Corrugated single wall pipe
• 4″ Dualwall corrugated pipe
• 4″ PVC SDR 35
• 4″ PVC Schedule 40
• 4″ PVC Schedule 30
• 4″ Triple Wall septic field pipe
• 3″ Corrugated single wall pipe
• 3″ Dualwall corrugated pipe
• 3″ PVC SDR 35
• 3″ PVC Schedule 40
• 3″ PVC Schedule 30

The downspout will snap right in to our leaf filter cleanout with no need to seal or glue it.

Made in the USA

We are proud to say we manufactured our leaf filter cleanout in the USA – right  in   Michigan.

FDM’s Indestructible Turf Restrictor Plate 2.0 with 4 in. Pop-Up Emitter
(pop up door is included)

Connects to 4 inch Corrugated Pipe.

Turf Restrictor plate is available in black, green or tan.

Product Details

Dimensions and Specifications

Kit Includes:

• Turf Restrictor Plate with Pop-Up Door
• FDM’s 4 in. Not Quite a 90 Fitting for maximum flow rate
• Fully Assembled

2960 MONUMENT BOXES Floor and monument boxes Floor boxes are used in concrete floors to provide access to openings and valve controls. They can also be used as forms in concrete floors wherever a round opening is desired.

• • Offers watertight fit for secure and leak-free connections

  • Designed to produce a 90-degree change in the flow direction

  • Snap-in end connection ensures easy installation and is ideal for gravity-flow storm sewer and subsurface drainage application

• Connects 4 inch Sewer and Drain pipe to 6 inch Sewer and Drain pipe

• Connects 4 inch and 6 inch Sewer and Drain pipe to select drainage products

• Made of PVC for Hub X Hub solvent-weld connection

• Connects 4 inch Sewer and Drain (Sewer and Drain) pipe to 6 inch Sewer and Drain pipe in non-pressurized drainage and sewer piping systems

• Connects 4 inch or 6 inch Sewer and Drain pipe to select drainage products such as channel drain outlets and pop-up emitters

• As part of a complete drainage system, this PVC coupling connects two Sewer and Drain pipes of different sizes together, or connects drainage product to pipe to convey excess water for proper release downstream

• Attach 4 inch Sewer and Drain pipe to one end of fitting and 6 inch Sewer and Drain pipe to the other end also connects 4 inch Sewer and Drain pipe to drainage products that fit 6 inch Sewer and Drain connections or 6 inch Sewer and Drain pipe to parts that fit 4 inch Sewer and Drain connections solvent weld to PVC components

• Meets applicable ASTM standards, Coupling made of polyvinyl chloride (PVC) using a combination of virgin and recycled content treated with UV inhibitors to prevent fading and cracking

• Comes with one PVC Increaser/Reducer Coupling

Injection molded

• Annular corrugated profile wall polyethylene pipe and fittings for gravity-flow storm sewer and subsurface drainage application

• Soil Tight

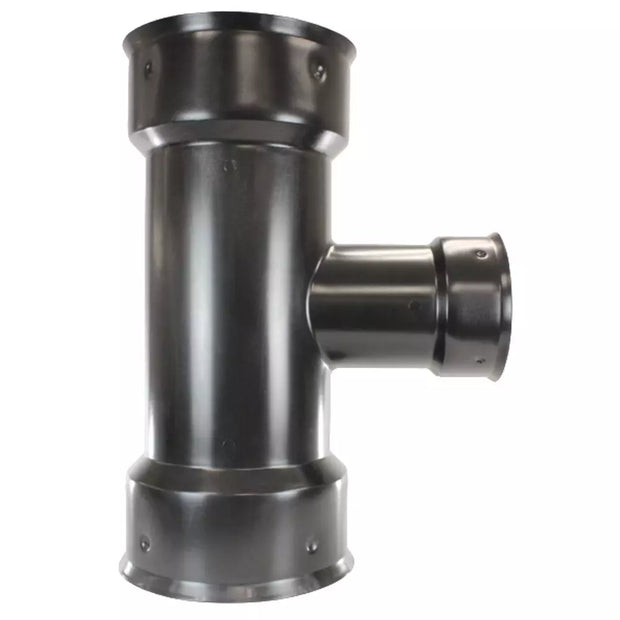

Advanced Drainage Systems, Inc. (ADS) 4 in. Snap Tee is the ideal fitting used to connect a 4 in. lateral singlewall corrugated drain pipe to a 4 in. singlewall corrugated main line pipe. Made of high density polyethylene (HDPE), the snap tee is designed to last the life of the drainage system. ADS singlewall fittings are the right choice for your residential and commercial drainage projects.

Highlights

• Made of High-density polyethylene construction that resists corrosion and abrasion

• HDPE material is strong, durable, economical material which is less brittle than PVC, particularly in cooler temperatures

• Designed to join 4 in. single-wall corrugated polyethylene drainage pipes

• Snap-on design makes a fast, secure, leak-resistant joint connection

• Installs quickly because there is no need to bevel the pipe edge when making the joint

• Survives the impact of rocks in the backfill and the rigors of cold weather handling

• Joins 3 lengths of pipe at a 90° T angle

• All the economy and performance benefits you've come to trust in polyethylene pipe can now be enjoyed in a complete 4 in. through 60 in. system

4" PVC FITTING CLEAN OUT FITTING ONLY

refers to a plumbing fitting that allows access to a sewer line for cleaning, specifically designed for a 4-inch diameter pipe, and only includes the fitting itself (not the cap or plug that seals it) - essentially, it's a section of pipe with a threaded opening where you can screw on a cleanout plug to access the line for clearing blockages

Dual wall N-12 pipe, with its smooth interior wall and corrugated exterior, offers exceptional hydraulics and strength. Built using application specific high density polyethylene, dual wall N-12 corrugated pipe also provides superior corrosion and abrasion-resistance. This makes it an excellent alternative to reinforced concrete (RCP) and corrugated metal pipe (CMP).

• Smooth interior with a Manning's value of 0.012 resulting in increased flow capacity

• Inert HDPE material is resistant to the effects of chemicals, abrasion, hot soils, and effluent

• Lightweight product for best installed cost and maximizing delivery and installation efficiencies

Easy to install and snap into place and is resistance to corrosion and abrasion.

• Easy to install and snap into place and is resistance to corrosion and abrasion

Advanced Drainage Systems, Inc. (ADS) 4 in. Singlewall Snap Wye is the ideal fitting used to connect a 4 in. singlewall corrugated drain pipe to a 4 in. singlewall corrugated main line pipe on a 45-degree angle. Made of high density polyethylene (HDPE), the snap wye is designed to last the life of the drainage system. ADS singlewall fittings are the right choice for your residential and commercial drainage projects.

Highlights

• Made of High-density polyethylene construction that resists corrosion and abrasion

• HDPE material is durable, strong and economical

• Designed to split runs of 4 in. single-wall corrugated polyethylene drainage tape

• Connects pipes at an angle

• Snaps easily onto pipe for fast connections

• One piece molded design deters leaking at the joint

• Use for residential drainage applications

• Black in color

Advanced Drainage Systems, Inc. (ADS) 4 in. Singlewall Solid Snap End Cap is the ideal fitting at the end of a 4 in. singlewall corrugated drain pipe run to block water flow. Made of high density polyethylene (HDPE), the solid snap end cap is designed to last the life of the drainage system. ADS singlewall fittings are the right choice for your residential and commercial drainage projects.

Highlights

• Made of High-density polyethylene construction that resists corrosion and abrasion

• Strong, Durable construction helps withstand weather and human elements, and does not become brittle over time

• Use to terminate a run of 4 in. D single-wall drainage pipe (not included)

• Fits over the outside of 4 in. corrugated flex drain pipe

• 4 in. corrugated pipe fitting

• Lightweight and easy to install

• Cap slips over end of pipe and snaps into pipe corrugations

• Integral cleats snaps onto the end of corrugated pipes for a secure fit

• One piece molded design deters leaking at the joint

• Rated for soil drains

• Maximum working temperature of 180°F

Easy-to-handle, safe, lightweight pipe requires less labor and equipment for faster installation and reduced costs

• Provides superior resistance to chemicals, road salts, motor oil and gasoline - will not rust, deteriorate or crumble

• Withstands repeated freeze/thaw cycles and continuous sub-zero temperatures

Advanced Drainage Corrugated Heavy Duty Perforated Single Wall Drain Pipe, 4 in, 250 ft Roll Length, HDPE

• Flexible, lightweight, easy to use

Flexible, light weight, easy-to-use

• Great return on your investment

• Increased crop production/yields

• Decrease nitrates in drinking water

• Greater control over your crop management

This corrugated snap elbow is sometime called a bend a drain pipe. It features an outer style for extra strength and a compression fit to help ensure a tighter connection.

• 4 in.

• 90 deg.

• 5.1 in. length

The ADS 45 Degree Soil Tight Elbow N-12 Series Black is manufactured from super-quality material for excellent durability. The tool is light in weight for seamless operation. It is resistant to weather and corrosion for upscaled productivity.

The ADS 90 Degree Elbow N-12 Series HDPE Black is manufactured from super-quality material for excellent durability. The tool is light in weight for seamless operation. It is resistant to weather and corrosion for upscaled productivity.

• Dual wall N-12 pipe, with its smooth interior wall and corrugated exterior, offers exceptional hydraulics and strength. Built using application specific high density polyethylene, dual wall N-12 corrugated pipe also provides superior corrosion and abrasion-resistance. This makes it an excellent alternative to reinforced concrete (RCP) and corrugated metal pipe (CMP).

  • Smooth interior with a Manning's value of 0.012 resulting in increased flow capacity

  • Inert HDPE material is resistant to the effects of chemicals, abrasion, hot soils, and effluent

  • Lightweight product for best installed cost and maximizing delivery and installation efficiencies

• The single wall corrugated HDPE pipe is ideal for drainage projects where flexibility, light weight and low cost are important

• Homeowners find that this corrugated pipe is an economical, easy-to-install solution to common residential storm water drainage problems

• These may include downspouts run off, foundation and window well drains, driveway culverts and wet spots on the lawn

• Annular corrugated single wall

• 3"- 15" (75-381 mm)

• 100'-5,500' (30-1676 m) coils, depending on pipe diameter

• 10'-20' (3-6 m) sticks

• Internal, external snap or split band couplers

• ASTM F667

End caps and end plugs create a termination point for a line of drainage pipe.

• Green pipe for use in gravity sewer and storm drainage applications

• Not intended for pressure use

• For use where systems will not exceed 140° F

• Highly resistant to chemicals commonly found in sewage and industrial waste

• Conforms to Standards: ASTM D 1784, ASTM D 3034, SDR 35, ASTM D 3212 and ASTM F 477

• Require no special tools for cutting and to be installed with solvent cement

** Local pick-up ONLY **

4" PVC Coupling

A 4 in PVC coupler is a fitting that joins two pieces of PVC pipe that are 4 inches in diameter

4" PVC SANITARY TEE

"4 inch sanitary tee" is a plumbing fitting, specifically a type of tee with a 4-inch diameter, designed to create a smooth transition in waste water flow by having a curved center section, typically used in drain lines where waste needs to change direction from horizontal to vertical without creating turbulence or blockages; essentially, it's a 4-inch pipe that branches off at a 90-degree angle with a curved design for optimal drainage

4" PVC CAP

is a fitting that seals the end of a 4 in PVC pipe.

2X3X4 PVC DOWNSPOUT ADAPTER

A rectangular pipe for conveying rain water from a gutter to the ground or to a drain.

4" PVC DRAIN GRATE

4" PVC FITTING, PLUG FOR C/O FITTING

4" PVC 90deg HUB/HUB LONG

"90 long turn PVC fitting" refers to a PVC pipe fitting that creates a 90-degree turn with a longer radius than a standard elbow, allowing for a smoother flow of liquid by minimizing turbulence within the pipe, often used in drain and waste systems where a gradual change in direction is needed; essentially, it's a "sweep elbow" with a 90-degree angle

4" PVC 45deg HUB

4" PVC 22deg street HUB

"4 22 street coupler" refers to a plumbing fitting, specifically a "street elbow" that is 4 inches in size and has a 22.5 degree angle, typically used to connect a pipe directly to another fitting at an angle in a drain, waste, and vent (DWV) system; "street" indicates that one end connects to a pipe directly while the other connects to a fitting at an angle

4" PVC TEE

PVC Tee joints are the most commonly used fittings. These joints are used to connect three pipes for the purpose of either combining or dividing the flow of the fluid

10"X24" W/6" HOLE CLAY CROCK

**LOCAL PICK-UP ONLY**

8"X12" CLAY CROCK RISER

**LOCAL PICK-UP ONLY**

12"X12" CLAY CROCK RISER

STRAINER-CI, FITS 8" CROCK, 10-1/4" DIA

STRAINER-CI, FITS 10" CROCK, 11-3/4" DIA
